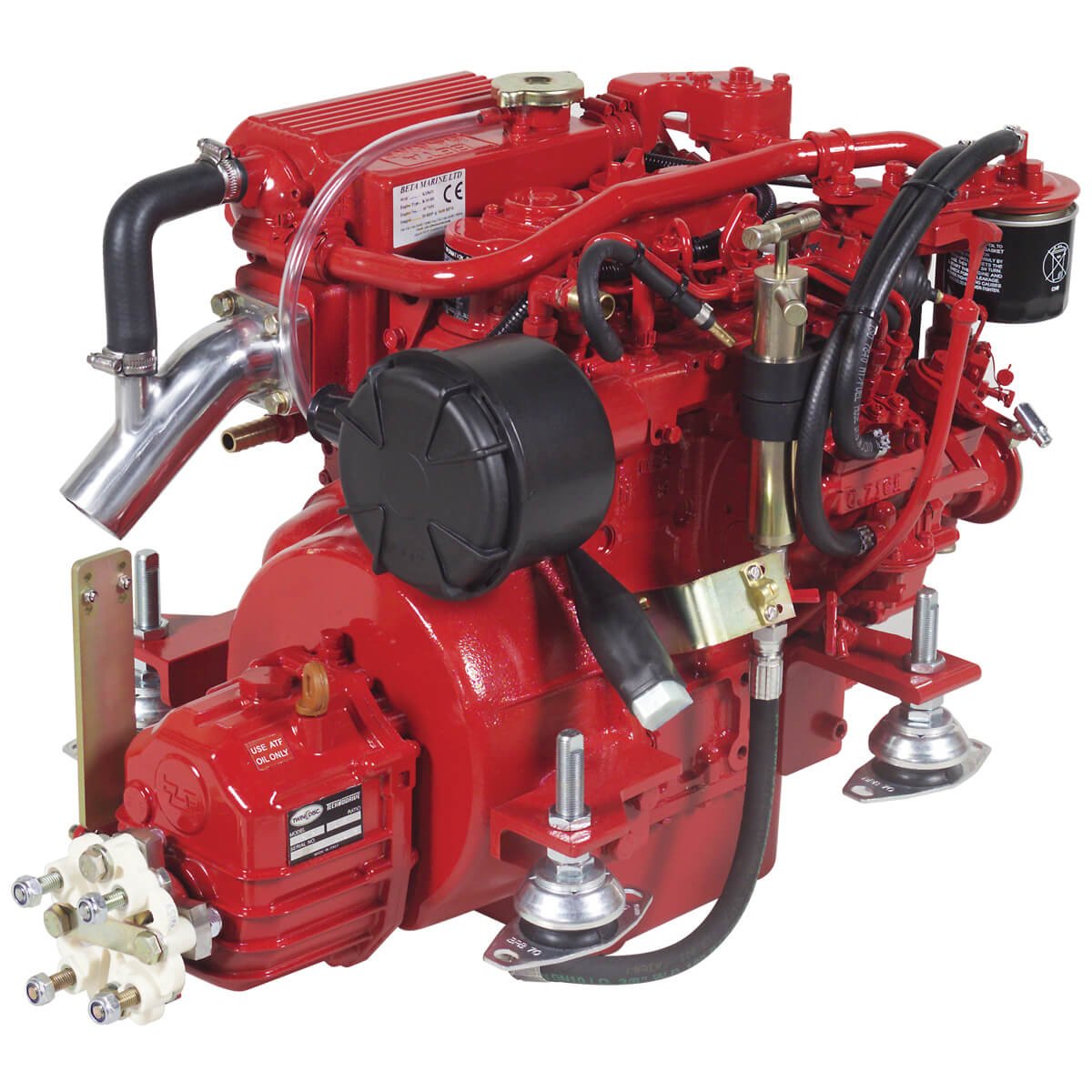

Beta 20

€6.000 + KDV

Marka: Beta Marine

Silindir Adeti: 3

Hacim: 719 CC

Güç: 20 hp @ 3600 rpm

Ağırlık: 104 KG

Ürün Durumu: Sıfır

Stok Durumu: Stokta Var

Standart Özellikler
Şanzıman Seçenekleri ve Teknik Çizimler
Kontrol Paneli Opsiyonları
Elektrik Seçenekleri
Sığ Karter Seçenekleri
Özel Servis Sehpası
Aksesuarlar
Literatür & Kılavuzlar

Standard Specifications

RCD 2 (Recreational Craft Directive 2013/53/EU) exhaust emission compliant.
EPA (U.S Environmental Protection Agency) Tier III – 40 CFR 1042 exhaust emission compliant. Note: Extra charges apply and this must be specified at time of order.
Mechanically governed comes with:
- Heat exchanger, header tank and water cooled exhaust manifold.
- Fresh and sea water pump, injection bend for a wet exhaust.
- Mechanical fuel lift pump, fuel and oil filtration.
- Flywheel housing and drive plate with heavy inertia ring for super smooth running at low rpm.
- Special quiet air intake filter.
40 Amp, 12 Volt battery charging alternator.
Complete with ‘ABV’ control panel with tachometer with running hour recorder, keystart switch, push button stop, green light for ‘power on’, red warning lights and audible alarm for: low oil pressure, high water temperature and engine alternator ‘no charge; 3m interconnection cable with multi pin plug connector.
Heavy duty engine feet and flexible mountings.
R&D flexible coupling.
‘Morse’ type end fittings for engine speed and gearbox control.
Engine test certificate and operators manual.
Beta red paint.

Şanzıman Seçenekleri ve Teknik Çizimler

Beta Marine offer the following standard gearbox options and reduction ratios. Gearboxes have been selected to match the torque loading of each engine and will be correct for the majority of yachts, motor sailors or motor boats.

Bobtail – No Gearbox
Bobtail Engine with Drive Plate & Housing Only	Standard

Technodrive / Twin Disc
TMC40 – Mechanical	Standard
TMC60 – Mechanical	Optional
TMC60A – 7° Down Angle, Mechanical	Standard

PRM Marine
PRM90 – Mechanical	Standard
PRM125 – Mechanical	Optional
PRM150 – Hydraulic	Standard
PRM280 – Hydraulic	Optional
PRM260C – In-line Hydraulic	Optional
